Engine Support Brackets This page covers the brackets that bolt directly to the block and help the rubber "biscuit" motor mounts support it. We list car applications first, and then truck applications. Most of our brackets can be used either for missing or damaged originals, or to swap a big block a vehicle that originally came from the factory with a small block (in most cases.) In cases such as the early Chrysler "floating power" mounts and the later style "spool" type mounts, the bracket and insulator are a single unit and they are covered here as well. For applications where the rubber mount or insulator is a separate piece from the bracket, see our ENGINE MOUNTS page for the insulator. We carry transmission mounts as well, check for them under our Transmission Parts page. |

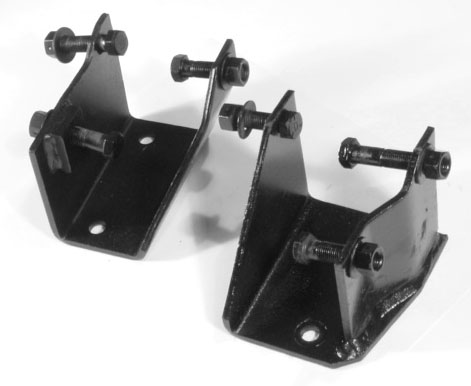

| Shown above are our most popular
brackets, Chrysler # 2536132, for the right side, and 2863751 for the left.
Notice the left hand bracket will have a tube welded across the channel area
of the mount (shown above on the right) making it easy to distinguish from
the right side bracket. These were used on B bodies from 1966-72, C bodies
from 1966-73 and E bodies from 1970-74. The right hand bracket (2536132) was
also used on the passenger side of big block A bodies from 1967-69 with our
101-1063 insulator. Great replacement brackets for missing or damaged
originals on factory big block cars, or for transplanting a big block into a
small block car (except A body) of the above years and body styles. No k
member changes are required. Use with our 101-1063 insulators. These are
sold as a set including one right hand bracket and one left hand bracket. Part No: 119-1000 - Engine support brackets 66-72B 66-73C 70-74E - Price: $49.95/set. |
\

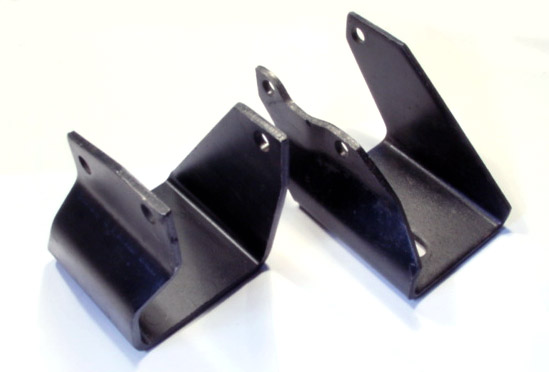

| Shown above is our special conversion
bracket for use on left hand (driver's side) applications for original big
block 1965 C body and 1967-69 A bodies. The factory replacement insulator
(engine mount) for these applications has been discontinued for many years
and is almost impossible to find, but our special conversion bracket allows
you to use our commonly available 101-1068 insulator available on our
Engine Mounts page. A very convenient (and
much lower cost) solution to a common problem with the above applications.
Brand new and powder coated black. Remember, this setup is for original big
block cars, so if you are transplanting a block or engine from another
application, it will need to have specific "mounting bosses" cast into it.
Many blocks have these, but not all. If you're not familiar with what we are
referring to, give us a call for details and we'll be happy to explain it. Part No: 119-1006 - Special Conversion Bracket - 1965C body/1967-69A body - Price: $59.95 |
| Shown above are the brackets for
1966-71 two and four wheel drive trucks. Chrysler # 2515960. Available as a
set only. Use with our 101-1061 insulators. These are normally always in
stock. Part No: 119-1001 - Engine Support Brackets 66-71 Truck - Price: $49.95/set. |
| Shown above are the brackets for
1972-1987 2 wheel drive trucks, Chrysler # 3496899, for both sides. Great replacement brackets for
missing or damaged originals on factory big block trucks, or for transplanting a big block into a
factory small block truck of the above years. Even though big blocks were
only in production until about 1979, these will actually work on trucks all
the way up to 1987, since the body style remained basically unchanged. Use
with our 101-1055 insulators. These are normally always in stock. Part No: 119-1002 - Engine Support Brackets 1972 & Later 2WD Trucks - Price: $49.95/set |
| Shown above is the right hand "spool"
type mount, used on B bodies starting in 1973 and all other body styles in
'74 and later. This is a new reproduction part. Notice the right hand
bracket does not have a tube welded across the channel area of the mount
making it easy to distinguish from the left side bracket. Chrysler used many
part numbers for these mounts, all of which refer to the same part. This
mount is Chrysler # 3642812, 3642814, 3817124, 3817116, and 4001746. Mounting
bolts NOT INCLUDED with bracket.
Part No: 101-1057 - Engine Support Bracket - R - Spool - NEW. Price: $39.95 |
| Shown above are the brackets for
1974-79 Dodge motorhomes with 440 engines. Chrysler # 3894718 (R) and
3894719 (L.) Great for custom engine swaps as well. Sold as a set. Use with
our 101-1061 insulators. These are normally always in stock. Part No: 100-1091 - Engine Support Brackets - Late Motorhome - USED. Price: $49.95 |
| Shown above are the support brackets
for 1969-77 Motorhomes with 413 engines, and 72-73 Motorhomes with 440
engines. Chrysler # 2955888 and 3735086 (R) and 2955887 and 3735087(L).
Great for engine swaps as well. Use with our 101-1061 insulators. Mounting
bolts NOT included. These are normally always in stock. Part No: 100-1092 - Engine Support Brackets - Early Motorhome - USED. Price: $49.95 |
| Shown above are early Chrysler
"Floating Power" mounts, used from 1960-66. These massive units combine the
engine support brackets and mounts in one. Two versions were used.
2128571 (L) and 2128572 (R) are shown above. If they are placed "in
position" as if they were bolted to the engine, the mounting tabs on the
bottom will face towards the front of the car. These mounts were used on
cars with 126" wheelbase. There was also a different version of Floating
power mounts available, with the part numbers of 2120237 (L) and 2120238
(R), which look very similar except when they are placed as above, the
mounting tabs will face towards the rear of the car instead of the front.
These were used from 1960-64 on cars with the shorter 122" wheelbase. Sold
as a pair only. These are available used only, and the rubber is usually
marginal, but usable. There are many companies that can rebuild these to
like new condition. Please call us if interested. Mounting bolts NOT
included. Part No: 100-1090 - Engine support brackets 2128571 & 2128572 Floating Power - USED. Price: $99.95 |
| Shown above are the support brackets
for what we believe to be big block VAN (or van chassis motorhome - class C)
applications. Both these brackets have long oval slots for where the engine
mount insulators studs bolt through them. If anyone can identify these
brackets positively, please let us know. Limited availability. Part No: 100-1093 - Engine Support Brackets - Van - USED. Price: $89.95 |
| Shown above are the support brackets
for what we believe to be big block VAN (or van chassis motorhome - class C)
applications. The bracket with the large hole in the side of it (to clear
the oil pump) is identical to our 1972 and later 4WD truck Left hand
bracket, however the Right hand side is different. The left brackets has a
large oval slot for the engine mount stud while the right bracket has a
small hole with a locating bump. If anyone can identify these brackets
positively, please let us know. Limited availability. Part No: 100-1094 - Engine Support Brackets - Van - USED. Price: $89.95 |
(661) 951-3700
|
Table: Engine Mounting
Brackets. |
|||||||
| 440 | 426 | 413 | 400 | 383 | 361 | 350 | |
| 1979 | 3894718 (Motorhome R) 3894719 (Motorhome L) 3496899 (2wd Truck) 3897274 (4wd Truck R) 3823215 (4 wd Truck L) |
N/A | N/A | N/A | N/A | N/A | |
| 1978 | 3642814 (R) 3642815 (L) 3894718 (Motorhome R) 3894719 (Motorhome L) 3496899 (2wd Truck) 3897274 (4wd Truck R) 3823215 (4 wd Truck L) |
N/A | N/A | 3642814 (R exc. B body) 3642815 (L exc B body) 4001746 (R - B body) 4001747 (L - B body) 3496899 (2wd Truck) |
N/A | N/A | N/A |
| 1977 | 3642814 (R exc station wgn) 3642815 (L - exc. station wgn) 3817124 (R w/ Chrys. station wgn.) 3817125 (L w/ Chrys. station wgn.) 3898710 (R - Van) 3823407 (L - Van) 3894718 (Motorhome R) 3894719 (Motorhome L) 3496899 (2wd Truck) 3823214 (R - Truck) 3823215 (L - Truck) |
N/A | 2955888 (Motorhome R) 2955887 (Motorhome L) |
3642814 (R exc station wgn) 3642815 (L - exc. station wgn) 4001747 (L - B body) 3817124 (R w/ Chrys. station wgn.) 3817125 (L w/ Chrys. station wgn.) 3898710 (R - Van) 3823407 (L - Van) 3496899 (2wd Truck) 3823214 (R - Truck) 3823215 (L - Truck) |
N/A | N/A | |
| 1976 | 3642814 (R - B body) 3817124 (R w/ Chrys. station wgn.) 3817125 (L w/ Chrys. station wgn.) 3837096 (L) 3898710 (R - Van) 3823407 (L - Van) 3894718 (Motorhome R) 3894719 (Motorhome L) 3496899 (2wd Truck) 3823214 (R - Truck) 3823215 (L - Truck) |
N/A | 2955888 (Motorhome R) 2955887 (Motorhome L) |
3642814 (R - B body before 11/3/75) 4001746 (R - B body after 11/3/75) 3817124 (R w/ Chrys. station wgn.) 3817125 (L w/ Chrys. station wgn.) 3837096 (L before 11/3/75) 4001747 (L after 11/3/75) 3898710 (R - Van) 3823407 (L - Van) 3496899 (2wd Truck) 3823214 (R - Truck) 3823215 (L - Truck) |
N/A | N/A | |
| 1975 | 3642814 (R - B body) 3817124 (R w/ Chrys. station wgn.) 3817125 (L w/ Chrys. station wgn.) 3837096 (L) 3898710 (R - Van) 3823407 (L - Van) 3894718 (Motorhome R) 3894719 (Motorhome L) 3496899 (2wd Truck) 3823214 (R - Truck) 3823215 (L - Truck) |
N/A | 2955888 (Motorhome R) 2955887 (Motorhome L) |
3642814 (R - B body) 3817124 (R w/ Chrys. station wgn.) 3817125 (L w/ Chrys. station wgn.) 3837096 (L) 3898710 (R - Van) 3823407 (L - Van) 3496899 (2wd Truck) 3823214 (R - Truck) 3823215 (L - Truck) |
N/A | N/A | |
| 1974 | 3642814 (R - B body) 3642815 (L - B body) 3642812 (R exc. B body) 3642809 (L exc. B body) 3894718 (Motorhome R) 3894719 (Motorhome L) 3898710 (R - Van) 3823407 (L - Van) 3823214 (R - Truck) 3823215 (L - Truck) 3496899 (2wd Truck) |
N/A | 2955888 (Motorhome R) 2955887 (Motorhome L) |
3642814 (R - B body) 3642815 (L - B body) 3642812 (R exc. B body) 3642809 (L exc. B body) 3898710 (R - Van) 3823407 (L - Van) 3496899 (2wd Truck) 3823214 (R - Truck) 3823215 (L - Truck) |
N/A | N/A | |
| 1973 | 2536132 (R exc. B body Bracket only) 2863751 (L exc. B body Bracket only) 3642814 (R - B body) 3642815 (L - B body) 3496899 (2wd Truck) 3735086 (Motorhome R) 3735087 (Motorhome L) |
N/A | 2955888 (Motorhome R) 2955887 (Motorhome L) |
2536132 (R exc. B body Bracket only) 2863751 (L exc. B body Bracket only) 3642814 (R - B body) 3642815 (L - B body) 3496899 (2wd Truck) |
N/A | N/A | |
| 1972 | 2536132 (R) 2863751 (L) 3496899 (2wd Truck) 3735086 (Motorhome R) 3735087 (Motorhome L) |
N/A |
2955888 (Motorhome R) 2955887 (Motorhome L) |
2536132 (R) 2863751 (L) 3496899 (2wd Truck) |
N/A | N/A | |
| 1971 | 2536132 (R) 2863751 (L) |
2951601 (R) 3418305 (L) |
2955888 (Motorhome R) 2955887 (Motorhome L) 1934644 (HD Truck) 1938864 (HD Truck) |
N/A | 2536132 (R) 2863751 (L) 2515960 (Truck) |
1934644 (HD Truck) 1938864 (HD Truck) |
N/A |
| 1970 | 2536132 (R) 2863751 (L) |
2951601 (R - E body) 2780672 (R - B body) 3418305 (L - E body) 2780673 (L - B body) |
2955888 (Motorhome R) 2955887 (Motorhome L) 1934644 (HD Truck) 1938864 (HD Truck) |
N/A | 2536132 (R) 2863751 (L) 2515960 (Truck) |
1934644 (HD Truck) 1938864 (HD Truck) |
N/A |
| 1969 | 2536132 (R) 2863751 (L) |
2780672 (R) 2780673 (L) |
2955888 (Motorhome R) 2955887 (Motorhome L) 1934644 (HD Truck) 1938864 (HD Truck) |
N/A | 2465862 (L - A body) 2536132 (R) 2863751 (L) 2515960 (Truck) |
1934644 (HD Truck) 1938864 (HD Truck) |
N/A |
| 1968 | 2536132 (R) 2863751 (L) |
2780672 (R) 2780673 (L) |
N/A | 2465862 (L - A body) 2536132 (R) 2863751 (L) 2515960 (Truck) |
N/A | ||
| 1967 | 2536132 (R) 2863751 (L) |
2780672 (R) 2780673 (L) |
N/A | 2465862 (L - A body) 2536132 (R) 2863751 (L) 2515960 (Truck) |
N/A | ||
| 1966 | 2536132 (R) 2806167 (L) 2128571 (L Imperial) 2128572 (R Imperial) |
2780672 (R) 2780673 (L) |
N/A | 2536132 (R) 2806167 (L) 2515960 (Truck) |
2536132 (R) 2806167 (L) |
N/A | |
| 1965 | N/A | 2268220 (R wedge) 2268216 (L wedge Plym116"/Dodge117") 2465862 (L wedge Plym119"/ Dodge121.5") 2468150 (L Hemi) 2468151 (R Hemi) |
2128571 (L Imperial) 2128572 (R Imperial) 2268220 (R) 2465862 (L) |
N/A | 2268220 (R) 2268216 (L - Plym116"/Dodge117") 2465862 (L Plym119"/ Dodge121.5"/ Chrys) |
2268220 (R) 2268216 (L) |
N/A |
| 1964 | N/A | 2268220 (R exc. Hemi) 2268216 (L exc. Hemi) 2468150 (L Hemi) 2468151 (R Hemi) |
2120238 (R Dodge 880, & Chrys.) 2120237 (L Dodge 880, & Chrys.) 2128571 (L Imperial) 2128572 (R Imperial) |
N/A | 2120238 (R Dodge 880, & Chrys.) 2120237 (L Dodge 880, & Chrys.) 2268220 (R) 2268216 (L) |
2120238 (R Dodge 880, & Chrys.) 2120237 (L Dodge 880, & Chrys.) 2268220 (R) 2268216 (L) |
N/A |
| 1963 | N/A | 2120238 (R Dodge, Plymouth & Chrys.) 2120237 (L Dodge, Plymouth & Chrys.) 2268220 (R - B body) 2268216 (L - B body) |
2120238 (R Dodge, Plymouth & Chrys.) 2120237 (L Dodge, Plymouth & Chrys.) 2128571 (L Imperial) 2128572 (R Imperial) |
N/A | 2120238 (R Dodge, Plymouth & Chrys.) 2120237 (L Dodge, Plymouth & Chrys.) 2268220 (R - B body) 2268216 (L - B body) |
2120238 (R Dodge, Plymouth & Chrys.) 2120237 (L Dodge, Plymouth & Chrys.) 2268220 (R - B body) 2268216 (L - B body) |
N/A |
| 1962 | N/A | N/A | 2120238 (R Dodge, Plymouth & Chrys.
Newport/300) 2120237 (L Dodge, Plymouth & Chrys. Newport/300) 2128571 (L Chrysler exc. Newport/300) 2128572 (R Chrysler exc. Newport/300) 2268220 (R - B body) 2268216 (L - B body) |
N/A | 2120238 (R Dodge, Plymouth & Chrys.
Newport/300) 2120237 (L Dodge, Plymouth & Chrys. Newport/300) 2128571 (L Chrysler exc. Newport/300) 2128572 (R Chrysler exc. Newport/300) 2268220 (R - B body) 2268216 (L - B body) |
2120238 (R Dodge, Plymouth & Chrys.
Newport/300) 2120237 (L Dodge, Plymouth & Chrys. Newport/300) 2128571 (L Chrysler exc. Newport/300) 2128572 (R Chrysler exc. Newport/300) 2268220 (R - B body) 2268216 (L - B body) |
N/A |
| 1961 | N/A | N/A | 2120238 (R Dodge, Plymouth & Chrys.
Newport/Windsor) 2120237 (L Dodge, Plymouth & Chrys. Newport/Windsor) 2128571 (L Chrysler exc. Newport/Windsor) 2128572 (R Chrysler exc. Newport/Windsor) 2128935 (R Dart) 2128936 (L Dart) |
N/A | 2120238 (R Dodge, Plymouth & Chrys.
Newport/Windsor) 2120237 (L Dodge, Plymouth & Chrys. Newport/Windsor) 2128571 (L Chrysler exc. Newport/Windsor) 2128572 (R Chrysler exc. Newport/Windsor) 2128935 (R Dart) 2128936 (L Dart) |
2120238 (R Dodge, Plymouth & Chrys.
Newport/Windsor) 2120237 (L Dodge, Plymouth & Chrys. Newport/Windsor) 2128571 (L Chrysler exc. Newport/Windsor) 2128572 (R Chrysler exc. Newport/Windsor) 2128935 (R Dart) 2128936 (L Dart) |
N/A |
| 1960 | N/A | N/A | 2120238 (R Dodge, Plymouth & Chrys.
Windsor) 2120237 (L Dodge, Plymouth & Chrys. Windsor) 2128571 (L Chrysler exc. Windsor) 2128572 (R Chrysler exc. Windsor) 1926246 (HD Truck) |
N/A | 2120238 (R Dodge, Plymouth & Chrys.
Windsor) 2120237 (L Dodge, Plymouth & Chrys. Windsor) 2128571 (L Chrysler exc. Windsor) 2128572 (R Chrysler exc. Windsor) |
2120238 (R Dodge, Plymouth & Chrys.
Windsor) 2120237 (L Dodge, Plymouth & Chrys. Windsor) 2128571 (L Chrysler exc. Windsor) 2128572 (R Chrysler exc. Windsor) 1926246 (HD Truck) |
N/A |
| 1959 | N/A | N/A | 1858752 (R - Imperial) 1858753 (L - Imperial) |
N/A | 1737732 (R) 1737735 (L) |
1737732 (R) 1737735 (L) |
N/A |
| 1958 | N/A | N/A | N/A | N/A | N/A | 1737732 (R) 1737735 (L) |
1737732 (R) 1737735 (L) |
