Water Pump Housings Chrysler made at least 12 different styles of water pump housings over the years. We carry many different styles, new and used, in both aluminum and cast iron for a variety of applications. All cast iron housings are only available used. Standard car type (left hand lower hose) cast iron housings weigh 13.5 pounds while aluminum units weigh 5 pounds, saving you 8.5 pounds by running an aluminum housing. When ordering a water pump housing, don't forget a new water neck and thermostat, both are available on our WATER NECKS page. |
| Our BRAND NEW Aluminum water pump
housings are nearly identical to the "brand name" units... and
they are a fraction of the price. These have the alternator bosses cast into
them for both early and late applications, so as long as you need the lower
hose to exit on the left (drivers) side, this housing will work. These work
great with our new aluminum water pumps, (see our
water pumps
page for details.) May or may not include "440 Source" cast in logo,
depending on stock. Part No: 113-1015 - Water pump housing Aluminum - Drivers Side Lower Hose - NEW. Price: $64.95 We also offer the pump and housing combo deal for a great "package deal" price (listed below.) |
| Finally, a part that customers have been begging us
to make for years! An aluminum water pump housing that exits on the
passenger side instead of the drivers side. Now you can have your choice of
which side you want your lower hose to exit. In the past, the only housings
available with a passenger side lower hose were the extremely heavy and worn
out factory cast iron units. The choice was either to use one of those, get
a different radiator (costing hundreds of dollars) or run the lower hose all
the way across the bottom of the radiator (a compromise of both looks and
function.) These have the alternator bosses cast into them for both early
and late applications. These work great with our new aluminum water pumps,
(see our
water pumps
page for details.) Part No: 200-1079 - Water pump housing Aluminum - Passenger Side Lower Hose - NEW. Price: $$89.95 We also offer the pump and housing in our 200-1087 combo deal for a great "package deal" price (listed below.) |
| We now offer our driver's side lower
hose water pump housings and pumps
in a combo "package deal" which saves EVEN MORE of your hard earned dollars!
These are limited availability at this
price! Get 'em while they last!!!
Part No: 113-1016 - Aluminum water pump & Housing combo deal - Driver's Side Lower Hose - NEW. Price: $$109.95 (These include plain housings with no logo) Part No: 200-1086 - Aluminum water pump & Housing combo deal - Driver's Side Lower Hose - NEW. Price: $$99.95 (These include housings with our "440 Source" logo) |
| We also offer our passenger side
lower hose water pump housings and pumps
in a combo "package deal" which saves EVEN MORE of your hard earned dollars!
These are limited availability at this
price! Get 'em while they last!!!
Part No: 200-1087 - Aluminum water pump & Housing combo deal - Passenger Side Lower Hose - NEW. Price: $124.95 |
| Don't forget a BILLET
ALUMINUM water neck to go with your new water pump housing. These are a very hard to find part, with limited
availability. Spun from a block of solid billet aluminum. A custom piece
that speaks for itself. These fit all years and models of big blocks, including Hemis. Now back in stock!! Part No: 114-1004 - Billet Aluminum Water Neck - NEW. Price: $24.95 |
| Don't forget heater hose nipples to
go with your water pump setup. These fit ALL of our aftermarket aluminum
housings, and are factory correct for 1964-69 cars. They use 5/8" heater
hose, and are zinc plated for great corrosion resistance.
Part No: 200-1092 - Heater Hose Nipple Set - Price: $14.95 |
| Shown here is our package of 4 bolts
which are used to attach the water pump to the water pump housing. The
factory installed these bolts without any washers, and we do not include or
recommend using washers with these bolts. Using washers can raise the heads
of the bolts, and cause them to make contact with the water pump pulley in
some applications.
Part No: 109-1515 - Bolts - Water Pump to Housing (4) - Price: $6.95 |
| Our water pump housing bolt kit
includes the bolts shown below to attach a water pump housing to your engine
block. Supplied in a good looking gold iridite finish. The missing bolt on
the lower left side is included with our 109-1511 "Alternator bolt kit,"
since the type of alternator brackets being used will affect the length of
this bolt. The missing bolt on the upper right hand side of the housing is
used to hold the power steering brackets on (used only with power steering
cars, of course) and it is supplied with our 109-1513 "Power steering bolt
kit" if needed.
Part No: 109-1512 - Water Pump Housing Bolt Kit - Price: $9.95 |
| Our water pump housing bolt kit
includes the bolts shown below to attach a water pump housing to your engine
block. Supplied in a good looking ARP polished stainless steel, these are exactly what people mean
when they say "show quality." Made from ARP's proprietary "300" stainless
steel alloy, they are rated at a minimum 170,000 PSI, which is even stronger
than a grade 8 bolt! And, you can't beat the quality, shine and corrosion
resistance of polished stainless. Nothing resists the ravages of weather,
time and even repeated tightening and loosening like stainless. These are
truly maintenance free! Matching polished stainless washers are included.
Considering these bolts are located at the front top of the engine,
they're one of the first things you see when the hood is opened, so small details like this can really make a car "show quality." The missing bolt on
the lower left side is included with our 129-1034 "ARP Stainless Alternator bolt kit,"
since the type of alternator brackets being used will affect the length of
this bolt. The missing bolt on the upper right hand side of the housing is
used to hold the power steering brackets on (used only with power steering
cars, of course) and it is supplied with our 109-1513 "Power steering bolt
kit" if needed.
Part No: 129-1033 - ARP Stainless Water Pump Housing Bolt Kit - Price: $24.95 |
|
We carry a convenient NPT pipe
plug kit, which includes all the pipe plugs which could possibly be needed
for a water pump housing. Normally, two of the plug locations would be used
for heater hose nipples, while the other two (one small and one large) would
be used for temperature sending units. Whether you use the small or the
large depends on the type of sending unit you are using. Usually the small
temp sending unit is used for cars with temp gauges, while the large one is
used for cars with idiot lights, however some aftermarket mechanical temp
gauges also use the large port. So, we include every plug so that you'll
have what you need, no matter what setup you are using. Use one kit per engine. Part No: 101 -1077 - Water Pump Housing Pipe Plug Kit - Price: $7.95 |
|
We also carry water pump
housing to engine block gaskets. Sold as a pair. These are the same gaskets
that come in our complete gasket sets. We now offer them separately for
convenience when doing water pump or cam swaps, etc. Part No: 112 -1006 - Water Pump Housing to Block Gaskets - Set of 2 - Price: $7.95 |
|
We also carry water pump
to housing gaskets. These are the nice thick ones which work great with our
water pumps & housing combos. Use one per engine. Part No: 112 -1008 - Water Pump to Housing Gasket- Price: $6.95 |
|
Our water pump spacers are
great when the water pump must be spaced away from the block for clearance
reasons. This is usually done when running a gear drive or belt drive, or
for belt alignment, or any type of custom installation. These are 1/4"
(.250") thick. Made from 6061 T-6 Aluminum in the good old US of A. Sold in
a set of 2 pieces, at a price you won't find anywhere else. Part No: 127 -1019 - Water Pump Spacers (2) - Price: $19.95/pair |
|
We offer water temp sending
units for factory and most aftermarket electrical gauges. These fit in the
small 1/8" pipe threads on the top drivers side of our aluminum water pump
housings, and work with cars which included factory temp gauges. Another
often overlooked part which can be hard to find at times. Don't let these
little items hold up your build. These are a premium part, still made in the
good old US of A. Part No: 138 -1015 - Water Temp Sending Unit - W/ Gauge - Price: $14.95 |
|
We offer water temp sending
units for cars which had "idiot" lights from the factory (not gauges). These
fit in the 1/2" pipe threads on the top passenger side of our aluminum water
pump housings. Another often overlooked part which can be hard to find at
times. Don't let these little items hold up your build. These are a premium
part, still made in the good old US of A. Part No: 138 -1016 - Water Temp Sending Unit - W/ Light - Price: $12.95 |

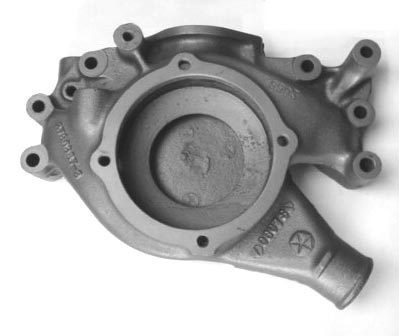

| Shown above is the most widely used
housing, casting #2780987. This housing was used on almost all cars and
light trucks from 1967-71, making it the desired housing for nearly all
muscle car applications, including 426 Hemis.. Chrysler part #'s are 2780988,2780989 and
2951806. Part No: 100-1073 - Water pump housing 2780987 - USED. Price: $NA |
| Shown above is a 3698468 housing,
Chrysler # 3698469 and 3769192. . Used starting in 73, these are ideal for
car applications using a right hand lower radiator hose. Part No: 100-1074 - Water pump housing 3698468 - USED. Price: $NA |
| Shown above is a 3751216 housing,
Chrysler # 3751217. Originally used on motorhome 440's from 73-79. Nearly
identical to the above car housing, as you can see by comparing the
pictures, however the opening under the thermostat area is slightly
different and much larger for increased water flow. Part No: 100-1075 - Water pump housing 3751216 - USED. Price: $NA |

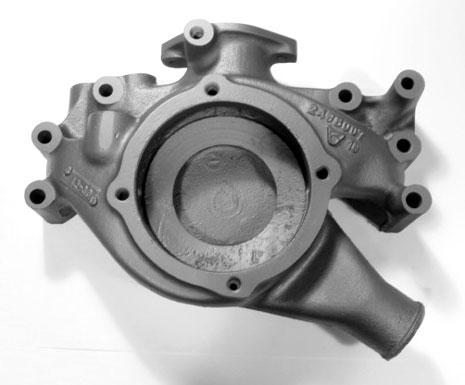

| Shown above is a 2468007 housing,
Chrysler # 3751217. Used from 1965-66, this is the last housing to use the
early style alternator bracket mounting boss. Part No: 100-1072 - Water pump housing 2468007 - USED. Price: $NA |

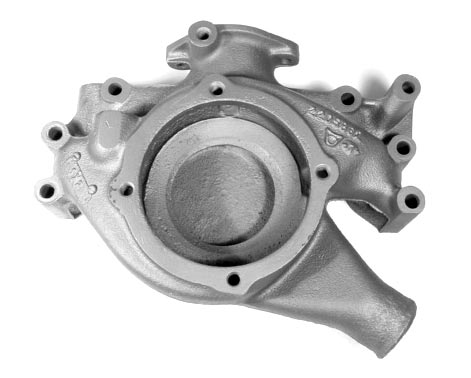

| Shown above is a 2205862 housing,
Chrysler part #'s 2240318 and 2448758. These housings are CAST IRON, be
careful not to confuse this with the identical part listed below with the
same casting number made of ALUMINUM. These were used from 62-64. Part No: 100-1070 - Water pump housing IRON 2205862 - USED. Price: $99.95 |

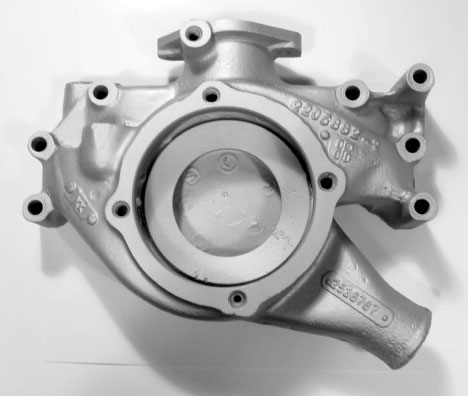

| Shown above is a 2536767 ALUMINUM
housing, Chrysler part # 2536725. This was used on 1965 S/S Race Hemis. Chrysler
used the same basic tooling for these as they did for the iron 2205862
housing listed above, so on the upper part of the housing you will find that
casting number. However, notice the additional tag added on the lower
radiator hose outlet, listing the true casting number. Notice the absence of
this tag on the above iron housing. Be careful not to confuse the two. We have ONE of these housings left available for sale. It has been milled approx. .250" off the back to allow for a motor plate while still keeping the pulley alignment correct. Part No: 100-1071 - Water pump housing ALUMINUM 2536767 - USED. Price: $149.95 |

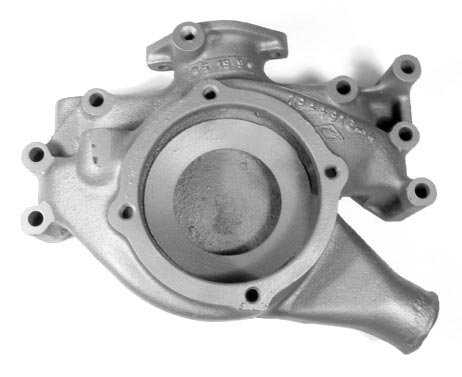

| Shown above is the earliest housing
we offer, with 1944916 as both the part and casting number. These were used
from 59-63 on non-AC vehicles. Availability on these is very limited. Please
call for details. Part No: 100-1069 - Water pump housing 1944916 - USED. Price: $NA |

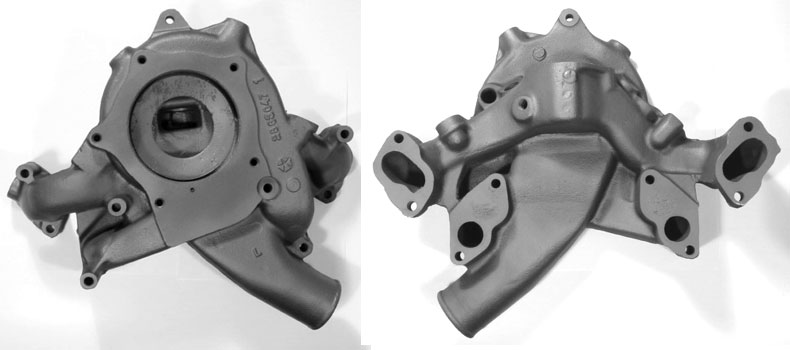

| This behemoth shown above is a heavy
duty 413 truck housing, casting #2863047, using Chrysler part #2863046.
Notice on the rear of this housing how it bolts to the block like a standard
car type housing, but has additional huge ports above that bolt directly to
the special heads these engines use. We carry many additional parts for
these engines, such as new water pumps, heads, etc. Part No: 100-1076 - Water pump housing HD Truck 2843047 - USED. Price: $124.95 |
4
(661) 951-3700
|
Table: Water Pump Housings |
|||||||
| 440 | 426 | 413 | 400 | 383 | 361 | 350 | |
| 1979 | 3751217 (motorhome) | N/A | N/A | N/A | N/A | N/A | |
| 1978 | 3879725 (car/ Lt truck) 3751217 (motorhome) |
N/A | N/A | 3879725 (car/ Lt truck) | N/A | N/A | N/A |
| 1977 | 3879725 (car/ Lt truck) 3751217 (motorhome) |
N/A | 2863046 (HD truck) | 3879725 (car/ Lt truck) | N/A | 2863046 (HD truck) | N/A |
| 1976 | 3879725 (car/ Lt truck) 3751217 (motorhome) |
N/A | 2863046 (HD truck) | 3879725 (car/ Lt truck) | N/A | 2863046 (HD truck) | N/A |
| 1975 | 3879725 (car/ Lt truck) 3751217 (motorhome) |
N/A | 2863046 (HD truck) | 3879725 (car/ Lt truck) | N/A | 2863046 (HD truck) | N/A |
| 1974 | 3769192 3879725 (Lt. truck) 3751217 (motorhome) |
N/A | 2863046 (HD truck) | 3769192 3879725 (Lt. truck) |
N/A | 2863046 (HD truck) | N/A |
| 1973 | 3751186 (& Lt. truck) 3751217 (motorhome) |
N/A | 2863046 (HD truck) | 3751186 3698469 (Lt. truck) |
N/A | 2863046 (HD truck) | N/A |
| 1972 | 3671315 | N/A | 2863046 (HD truck) | 3671315 2951806 (Lt. truck) |
N/A | 2863046 (HD truck) | N/A |
| 1971 | 2780988 | 2780988 | 2863046 (HD truck) | N/A | 2780988 | 2863046 (HD truck) | N/A |
| 1970 | 2951806 | 2951806 | 2863046 (HD truck) | N/A | 2951806 2780988 (Lt. truck) |
2863046 (HD truck) | N/A |
| 1969 | 2780988 | 2780988 | 2863046 (HD truck) | N/A | 2780988 | 2863046 (HD truck) | N/A |
| 1968 | 2780989 (w/ AC,HP) 2780988 (w/o AC) |
2780988 | 2205873 (HD truck) | N/A | 2780989 (w/ AC,HP) 2780988 (w/o AC & Lt. truck) |
2205873 (HD truck) | N/A |
| 1967 | 2780989 (w/ AC,HP) 2780988 (w/o AC) |
2780988 | 2205873 (HD truck) | N/A | 2780989 (w/ AC,HP) 2780988 (w/o AC & Lt. truck) |
2205873 (HD truck) | N/A |
| 1966 | 2525498 (w/o AC) 2585314 (w/ AC) |
2585314 | 2205873 (HD truck) | N/A | 2525498 (w/o AC) 2585314 (w/ AC) |
2525498 (w/o AC) 2585314 (w/ AC) 2205873 (HD truck) |
N/A |
| 1965 | N/A | 2536725 (Hemi) 2585314 (Hemi w/o AC) 2525498 (Wedge) |
2525498 (w/o AC) 2585314 (w/ AC) 2205873 (HD truck) |
N/A | 2525498 (w/o AC) 2585314 (w/ AC) |
2525498 (w/o AC) 2585314 (w/ AC) 2205873 (HD truck) |
N/A |
| 1964 | N/A | 2448759 (w/o AC, exc. 300K) 2448758 (w/ AC, 300K) |
2448759 (w/o AC, exc. 300K) 2448758 (w/ AC, 300K) 2205873 (HD truck) |
N/A | 2448759 (w/o AC, exc. 300K) 2448758 (w/ AC, 300K) |
2448759 (w/o AC, exc. 300K) 2448758 (w/ AC, 300K) 2205873 (HD truck) |
N/A |
| 1963 | N/A | 1944916 (w/o AC, exc. 300J) 2240318 (w/ AC, 300J) |
1944916 (w/o AC, exc. 300J) 2240318 (w/ AC, 300J) 2205873 (HD truck) |
N/A | 1944916 (w/o AC, exc. 300J) 2240318 (w/ AC, 300J) |
1944916 (w/o AC, exc. 300J) 2240318 (w/ AC, 300J) 2205873 (HD truck) |
N/A |
| 1962 | N/A | N/A | 1944916 (w/o AC) 2240318 (w/ AC) 2205873 (HD truck) |
N/A | 1944916 (w/o AC) 2240318 (w/ AC) |
1944916 (w/o AC) 2240318 (w/ AC) 2205873 (HD truck) |
N/A |
| 1961 | N/A | N/A | 1944916 (w/o AC) 2240318 (w/ AC) 1945421 (HD truck - early) 2205873 (HD truck - late) |
N/A | 1944916 (w/o AC) 2240318 (w/ AC) |
1944916 (w/o AC) 2240318 (w/ AC) 1945421 (HD truck - early) 2205873 (HD truck - late) |
N/A |
| 1960 | N/A | N/A | 1944916 (w/o AC) 1859634 (w/ AC) 1945421 (HD truck) |
N/A | 1944916 (w/o AC) 1859634 (w/ AC) |
1944916 (w/o AC) 1859634 (w/ AC) 1945421 (HD truck) |
N/A |
| 1959 | N/A | N/A | 1944916 (w/o AC) 1859634 (w/ AC) |
N/A | 1944916 (w/o AC) 1859634 (w/ AC) |
1944916 (w/o AC) 1859634 (w/ AC) |
N/A |
| 1958 | N/A | N/A | N/A | N/A | N/A | 1737706 (up to ser#50497) 1859251 (after ser#50497) |
1737706 (up to ser#50497) 1859251 (after ser#50497) |
| Numerical listing: | Casting # | Type | Our Part # |
| 1737706 | 1737706 | Early 1958 | |
| 1859251 | Late 1958 | ||
| 1859634 | 59-60 w/ AC | ||
| 1944916 | 1944916 | 59-63 w/o AC | 100-1069 |
| 1945421 | 60-61 HD Truck | ||
| 2205873 | 61-68 HD Truck | ||
| 2240318 | 2205862 | 61-63 w/ AC | 100-1070 |
| 2448758 | 2205862 | 64 w/ AC & all 300K | 100-1070 |
| 2448759 | 64 w/o AC, exc. 300K | ||
| 2525498 | 65-66 w/o AC | ||
| 2536725 | 2205862 2536767 |
1965 Hemi (Aluminum) | 100-1071 |
| 2585314 | 2468007 | 65-66 w/ AC | 100-1072 |
| 2780988 | 2780987 | 67-71 most w/o AC | 100-1073 |
| 2780989 | 2780987 | 67-68 w/ AC, HP | 100-1073 |
| 2863046 | 2863047 | 69-77 HD Truck | 100-1076 |
| 2951806 | 2780987 | 1970 car, 1972 Lt. Truck | 100-1073 |
| 3671315 | 1972 Only | ||
| 3698469 | 3698468 | 1973 Only | 100-1074 |
| 3751186 | 1973 Only | ||
| 3751217 | 3751216 | 73-79 440 Motorhome | 100-1075 |
| 3769192 | 3698468 | 1974 Only | 100-1074 |
| 3879725 | 74-78 400,440 |
All website content copyright 440 Source
(661) 951-3700
